| Product Name: | 7kw AC EV Charger | Protection Degree: | IP55 |
|---|---|---|---|
| Communication Protocol: | OCPP1.6 | RCD: | Type A |
| User Interface: | LED | Function: | Remote Control, APP Control, Colorful Lights, Voice Interaction, Screen |
| Environment Temperature:: | -20℃~+75℃ | Packing: | Box |
| Highlight: | 7kw AC Portable EV Charger,IP55 OCPP1.6 Portable EV Charger,7KW home dc charger for ev |
||
Product Description

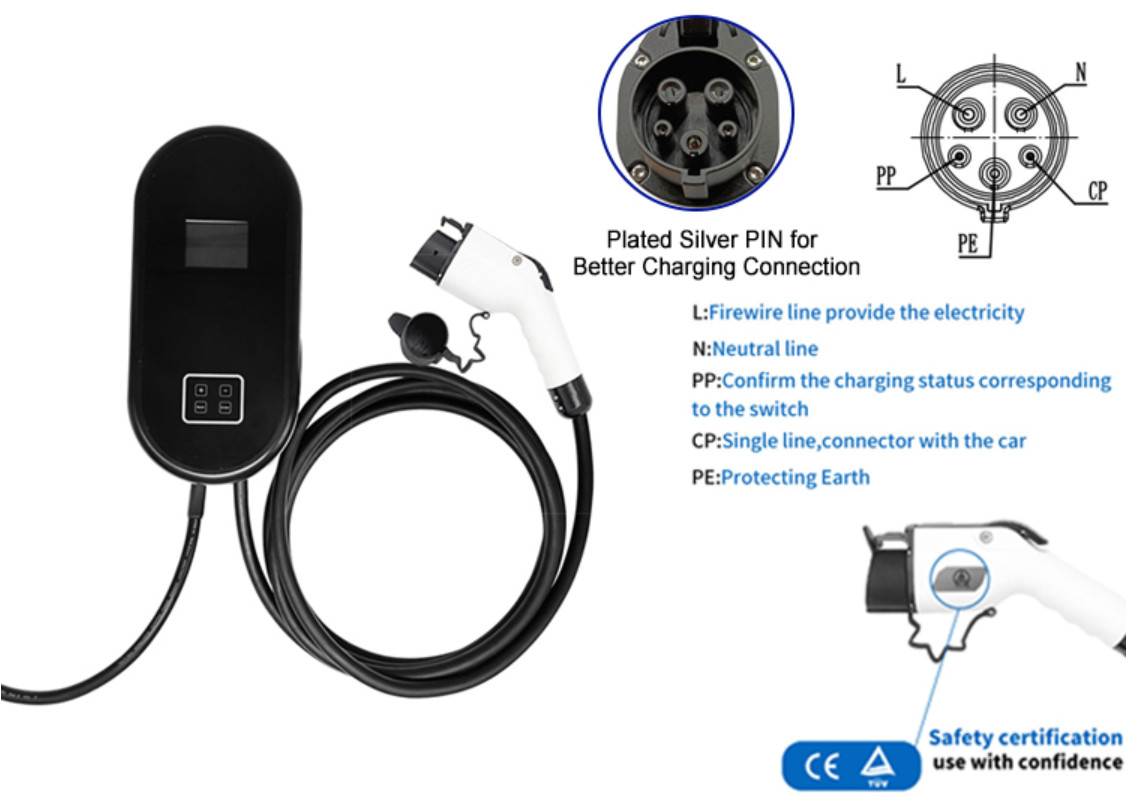

7kw AC EV Charger Ocpp Portable Charging Stations Level 3 Electric Car Charging Station
LCD SCREEN
The screen can show you the real-time charging date including charging time, voltage, current, power and tempera-ture of the AC EV Charger.
SAFE AND RELIABLE
The EV Charger has passed the strict test of CE and has multiple protection including Overvoltage, undervoltage, over-heating, overload, short circuit, leakage, lightning protection.
RFID FUNCTION
The EV Charger supports RFID function. The user can control the EV Charger to start and stop through the RFID card and prevent the unauthorized use of the cardless user.
| ——Input & Output—— | |||
| Input/Output Voltage | 230Vac±10% | Output current | 32A 1Phase |
| Input frequency | 55±10% | Charging gun type | Type2:IEC 62196-2 /Type1:SAE J1772 /GB/T20234.2 |
| Rated power | 7 KW | Cable length | 4 meters |
| Power Factor | >0.99 | Overall efficiency | 0.96 |
| ——Protection—— | |||
| Overvoltage protection | yes | Undervoltage protection | yes |
| Overload protection | yes | Short circuit protection | yes |
| Earth leakage protection | yes | Over temperature protection | yes |
| Lightning protection | yes | Overcurrent protection | yes |
| ——Function and Accessory—— | |||
| Network connection | Ethernet | Visual Indication | LED Indicator light |
| Communication Protocol | OCPP 1.6 | Push Button | Emergency Stop |
| LCD Display | without | Language | English |
| RCD | Type A | RFID | yes |
| ——Working environment—— | |||
| Protection degree | IP55 | Maximum altitude | Up to 2000m |
| Environment temperature | -20℃~+75℃ | Cooling | Natural air cooling |
| Storage temperature | -40℃~+70℃ | Operating humidity | ≤95% non-comdensing |
| Applicable Scene | Indoor/Outdoor | Acoustic noise | <55dB |
| Standby power consumpiton | 5W | ||
| ——Package—— | |||
| Dimension (W/H/D) | 400*283*115 | Weight | 6kg |
| Certificate | CE, TUV, ISO,IP55, IK10 | ||
