Detail Information |
|||
| Type: | EV Charging Adapter | Rated Current: | 16A/32A |
|---|---|---|---|
| Operating Temperature: | -30℃ ~50℃ | Connection: | AC |
| Voltage: | 100~450V | Phase: | Single Phase / 3 Phases |
| Case Materrial: | Thermoplastic,UL94V-0 | Standard: | IEC62196-3 |
| Highlight: | 450V EV Charging Adapters,Single Phase EV Charging Adapters FCC,sae j1772 ev plug IEC 61851 |
||
Product Description

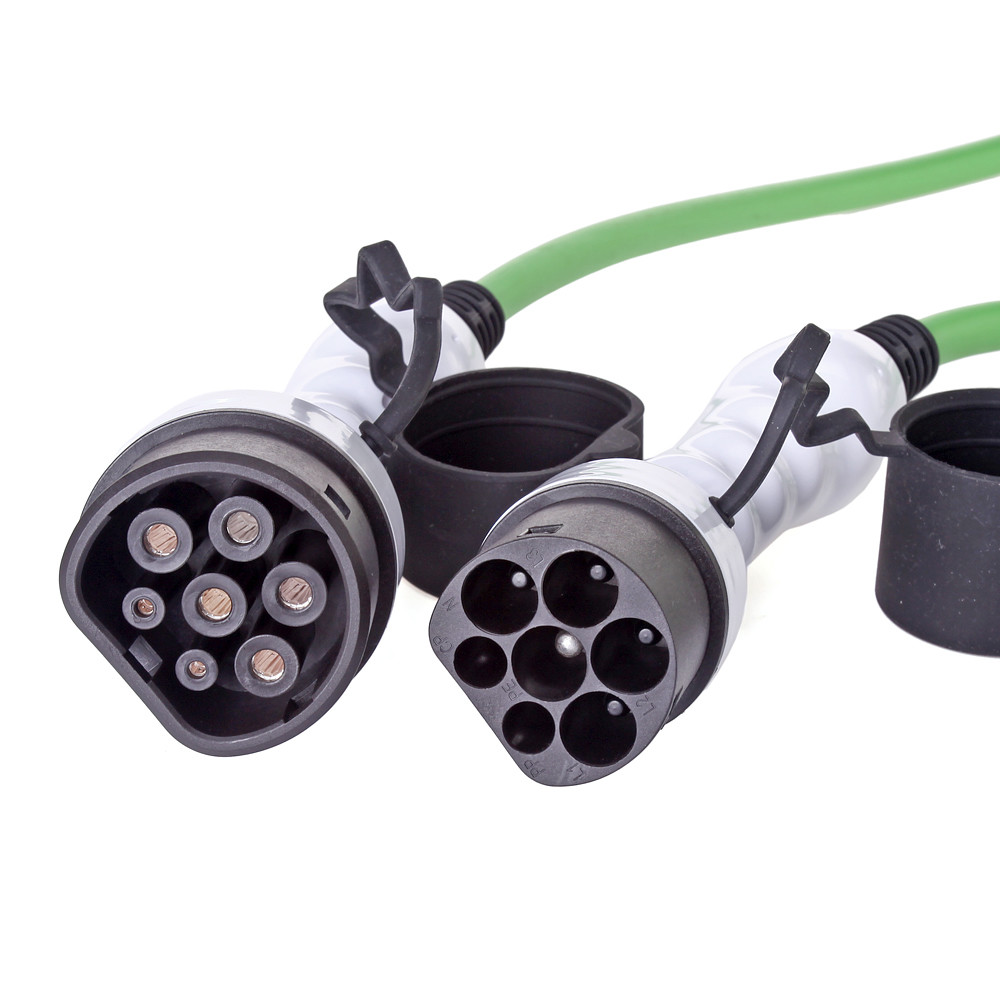

Type 1 Type 2 Convertor SAE J1772 IEC 62196 2 EV Adaptor And Charging Adapter
|
Type
|
EV Charging Adapter
|
The main material
|
Thermo Plastic/Silicon Rubber/Copper Alloy
|
|
Plug color
|
Black/White/Color
|
Patch life
|
≥10000
|
|
Rated Current
|
32A
|
Fire rating
|
UL94 V-0
|
|
Rated Voltage
|
220-250V
|
Waterproof rating
|
IP54
|
|
Resistance Voltage
|
2000v
|
Operating temperature
|
-30°C~+50°C
|
|
Insulation resistance
|
>1000MΩ
|
Cable Specification
|
3*6mm2+2*0.5mm2
|
|
Contact resistance
|
less than 0.5mΩ
|
Cable Length
|
5M/Other
|
Features
1.Conform to the provisions and requirements of IEC 62752, IEC 61851.
2.Using riveting pressure process with none screw ,have a beautiful appearance. Hand-held design conform to the ergonomic principle , plug conveniently.
3.TPE for cable insulation prolonging the aging resistance life-span, TPE sheath improved the bending life and wear resistance of ev charging cable.
4.Excellent protection performance, protection grade achieved IP67 (working condition).
Materials
Shell Material: Thermo Plastic ( Insulator inflammability UL94 VO)
Contact Pin: Copper alloy, silver or nickel plating
Sealing gasket: rubber or silicon rubber
TPE insulation,TPE Sheath EV Charging Cable for EV Plug & EV Socket ,32A 240V 62196
