Detail Information |
|||
| Product Name: | Ev Charger, Wallbox, Ac Ev Charger | Using: | Commericial/Residental |
|---|---|---|---|
| Average Trouble-free Time: | 8760 Hours | Operating Current: | 32a, 3 Phase |
| Start Mode: | Automatic/Card/APP | Charging Standard: | IEC 62196-2 |
| Communication Interface: | Ethernet/4G(Optional) | Power: | 11KW |
| Highlight: | IEC 62196 EV Car Charging Station,4G WIFI EV Car Charging Station,220Vac 40A 3 phase ev charger |
||

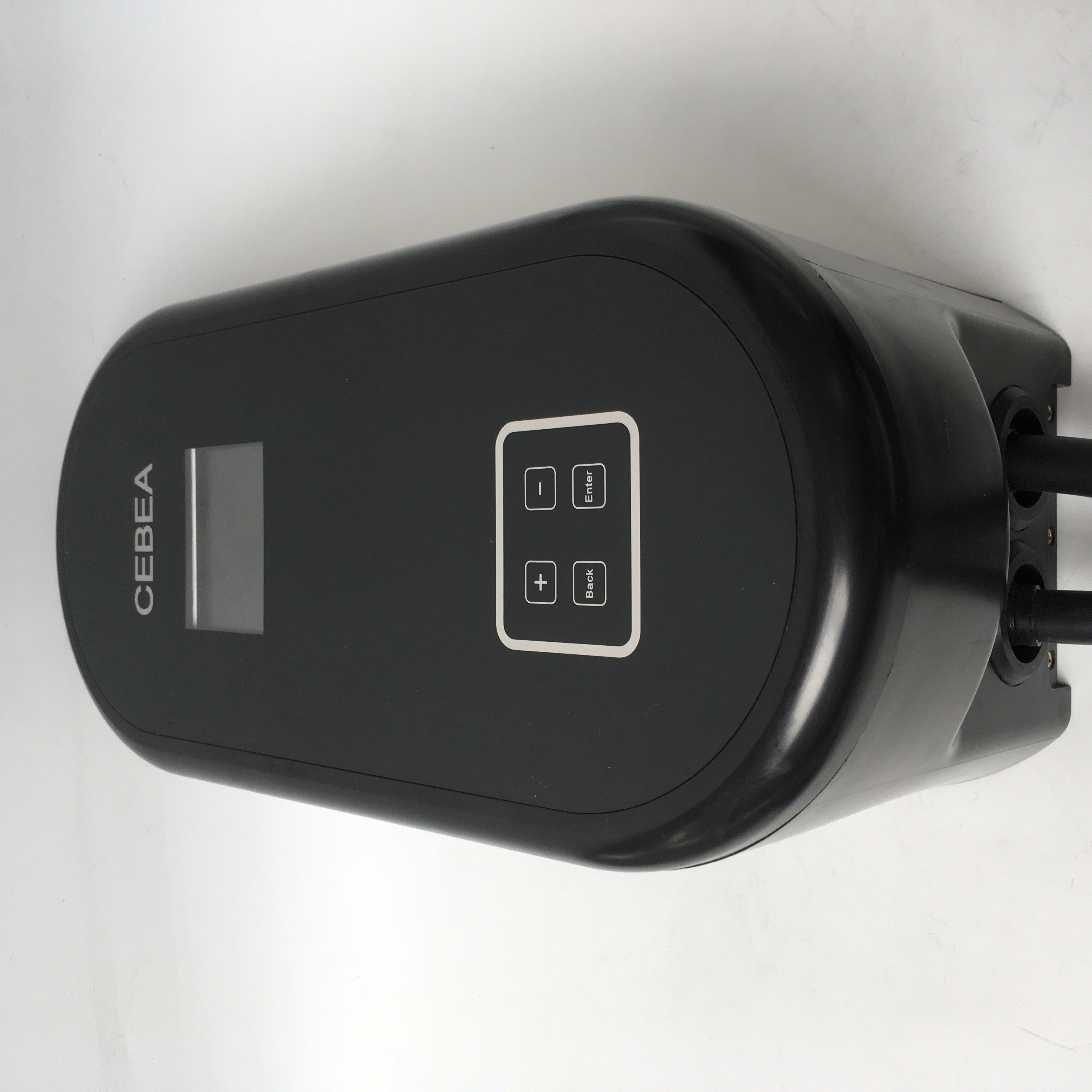

Product Description
Ethemet Communication 230vac AC DC EV Charger 11KW 32 Amp
Function: Voltage Monitoring, temperaturing monitoring, leakage protection, waterproof
Mechanical life:No-load plug in /out >10000 times
Coupled insertion force: 45NImpact of external force: Can afford 1M height drop and 2T vehicle run over pressure
Environmental Performance:Working Temperature: -30°C ~+ 50°C
Plug Material: ABS+thermoplastic, flame retardant grade UL94 V-0
Terminal: copper alloy, silver plating
Shell color: black/white optional
PRODUCT SPECIFICATIONS
No | Item | Data | No | Item | Data |
1 | Rated input voltage | single-phase 220vac | 9 | Working temperature | -20℃-55℃ |
2 | Max. input current | 40A | 10 | Working humidity | 5%-95% |
3 | Rated output voltage | 220Vac | 11 | Working altitude | ＜2000m |
4 | Rated output current | 32A | 12 | Applicable environment | Indoor/Outdoor(IP54 water-proof and dust-proof) |
5 | Power consumption | 2W | 13 | Noise control | ≤60dB |
6 | Network type | 4G/wifi/Ethernet/single machine | 14 | Working frequency | 13.56Mhz |
7 | Mode pf charging | Fixed quantity/fixed amount/fixed time | 15 | Distance for swiping card | 0-50mm |
8 | Term of payment | card/wechat pay/Ali pay/Bestway | 16 | Length of charging port | 5m |
* Compact design
Attractive appearance, 7‘ LCD screen, simple but elegant.
* Full protection
Full electrical protection, over/under temperature protection, Protection
against lightning, leakage, short circuit, over current, etc.
* Stable
IP65 protection grade, capable for harsh environment, salt-mist condition.
* Intelligent
4G/ethernet/Wifi/ Background monitoring, RFID/QR payment support.
* European standard
OCPP v1.6 standard open communication protocol, IEC62196-2 type 2 connector.
* Easy to install and operation
Wall-mounting or pole-mounting optional.
