Detail Information |
|||
| Product Name: | Residental Ev Charger | Input Voltage: | 220V/240V |
|---|---|---|---|
| Average Trouble-free Time: | 8760 Hours | Operating Temperature: | -30 ℃ To 55 ℃ |
| Start Mode: | Automatic/Card/APP | Enclosure Rating: | IP55 |
| Communication Interface: | Ethernet/4G(Optional) | Plug Type: | SAE J1772 |
| Highlight: | 220V IP55 EV Car Charging Station,SAE J1772 EV Car Charging Station,11KW 32Amp 22kw home charger |
||
Product Description

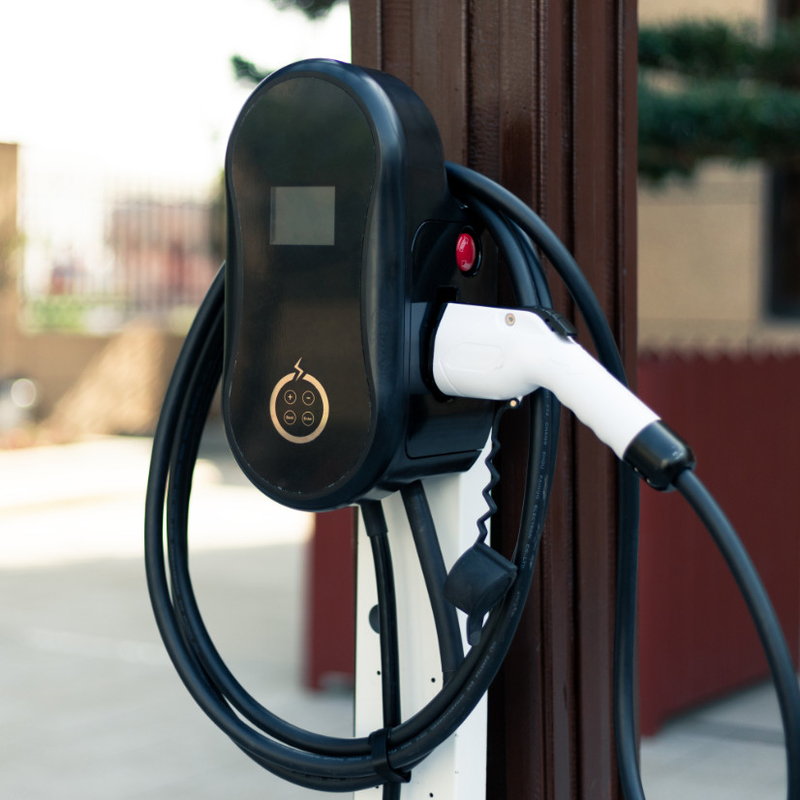

Ethemet Communication 230vac AC DC EV Charger 11KW 32 Amp
Living an eco-friendly life with your electric vehicle but annoyed with the slow charger that came with your car? Nervous about its ability to handle irregular power on your grid?
Our level 2 EV charger is here for you. Designed for electric cars using the J-plug (IEC 62196) standard, this portable ev charger is compatible with electric models from Tesla, Chevrolet, Ford, BMW, Mercedes-Benz, Toyota, Honda, Nissan, Ferrari, and more. Adjustable between 110 and 250 volts and 10 to 32 amps, this car charger offers a maximum charging speed of 7.2 kW per hour, getting you at least another 23 miles for each hour. The precision engineering of the internal circuit board allows automatic detection and correction of any problems during charging, including any issues with minimal, unstable, or excessive voltage, current, frequency, earth leakage, and temperature even during lightning and electrical storms.
Charge more quickly and with greater security with this handy charger!
PRODUCT SPECIFICATIONS
|
No |
Item |
Data |
No |
Item |
Data |
|
1 |
Rated input voltage |
single-phase 220vac |
9 |
Working temperature |
-20℃-55℃ |
|
2 |
Max. input current |
40A |
10 |
Working humidity |
5%-95% |
|
3 |
Rated output voltage |
220Vac |
11 |
Working altitude |
＜2000m |
|
4 |
Rated output current |
32A |
12 |
Applicable environment |
Indoor/Outdoor(IP54 water-proof and dust-proof) |
|
5 |
Power consumption |
2W |
13 |
Noise control |
≤60dB |
|
6 |
Network type |
4G/wifi/Ethernet/single machine |
14 |
Working frequency |
13.56Mhz |
|
7 |
Mode pf charging |
Fixed quantity/fixed amount/fixed time |
15 |
Distance for swiping card |
0-50mm |
|
8 |
Term of payment |
card/wechat pay/Ali pay/Bestway |
16 |
Length of charging port |
5m |
Each charger will be fully inspection to ensure product performance in good condition:
Withstand voltage insulation test - start high voltage machine test
Charging preparation -- measuring input voltage
Charging connection confirmation - measuring resistance
Ready to charge - measure current
Ready to charge - measuring frequency
Start up and charging stage - measure the output voltage
Start up and charging phase - measuring output current
Normal charge end test - measure output voltage
CP Disconnection Test: measure the output voltage after resuming charging
CP ground test - measure output voltage
Input overvoltage protection - measure output voltage
Input overvoltage protection - automatic recovery function, measuring output voltage
Input undervoltage protection - measure output voltage
Input undervoltage protection - automatic recovery function, measuring output voltage
Leakage protection - measuring output voltage
Overcurrent protection - measuring output current
Over current protection - automatic recovery function, measuring output current
