Detail Information |
|||
| Key Word: | Residental Ev Charging Pile | Charging Port: | Type 1/Type2 |
|---|---|---|---|
| Charging Capacity: | Up To 22KW | Input Voltage: | 230vac± 10% / 380vac ± 10% |
| Operating Temperature: | -30 ℃ To 55 ℃ | Plug Type: | IEC 621962 |
| Function: | Voltage Monitoring, Temperature Monitoring, LCD SCREEN, AUTOMATICAL REPAIR, Leakage Protection | Charging Standard: | Level 1 Level 2 Level 3 |
| Highlight: | IEC 621962 Car EV Charger,11KW 22KW Car EV Charger,home charging port for electric car |
||
Product Description

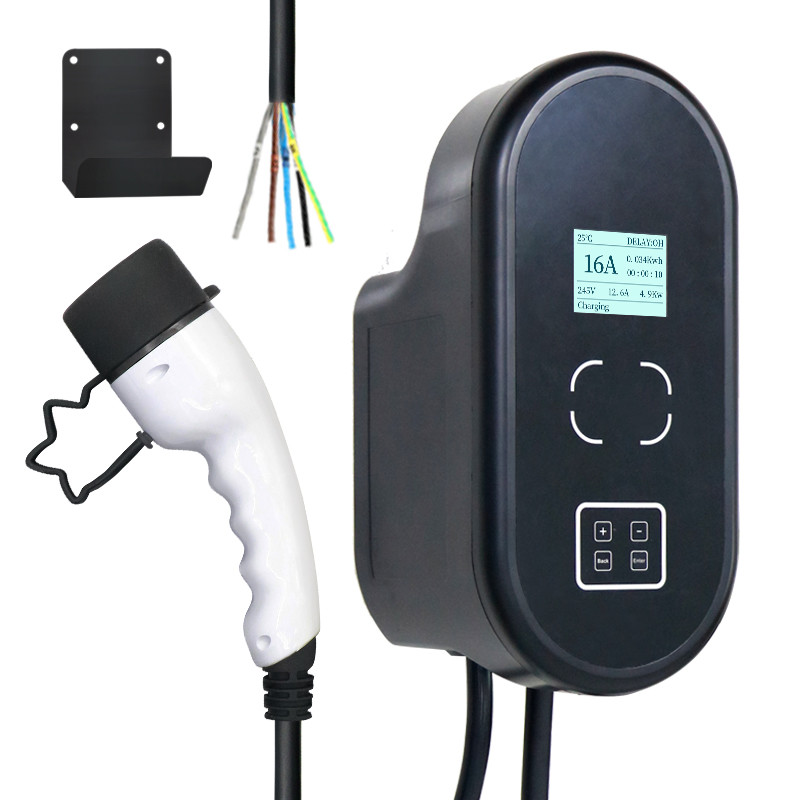

IEC 621962 Smart EV Charger Station 11KW 22KW residental ev charging pile
Product Parameters
|
Product name |
Car EV Charger |
||
|
Product type |
Home |
||
|
Input Voltage |
380vac ± 20% |
||
|
Frequency |
50Hz/60Hz |
||
|
Output voltage range |
380V±10% |
||
|
Rated output current |
32A |
||
|
Charge gun length |
5M |
||
|
Average trouble-free time |
8760 hours |
||
|
Working Temperature |
`-20℃~+50℃ |
||
|
Humidity of working environment |
5%~95% |
||
|
Altitude |
≤2000M |
||
|
IP level |
IP55 |
||
|
Atmospheric pressure intensity |
50kPa-110kPa |
||
|
Self-test function |
Self-diagnostic function |
||
|
Remote communication interface |
Ethernet |
||
|
Identification |
Identification by radio frequency card |
||
|
Metering function |
Electricity metering |
||
|
Human-computer interaction interface |
4.3 color display shows the following information:charging voltage,charging power, charging time. energy metering information, fault and alarm information |
||
|
Multaiple charging methods |
You can choose from fixed time charging ,fixed power charging ,fixed amount charging and automatic full charging modes |
||
|
Status indication function |
Three status indications, white,red and green,are set at the upper end of the charging post to indicate different working states. white light:power indication,green light:charging indication, red light is fault indication |
||
1. APP Control
* Setting Current: you can set the current when the power grid is overload.
* Controlling Stop & Start: Control the Stop & Start by your phone, you can control it in anywhere.
* Making an Appointment of Charging: If you want the electric vehicle to be charged in night, it is a good choice that you make an appointment of the charging by APP, it is very convenient.
* Record: you can check the charging record by APP in any time.
* The best Choice for home market
2. Load balance management:
* Restricting the total charging load protects the local grid
* Sharing the charging load cuts costs for the required electricity connection
* Choose an open type CT (current transformer) as the current sensor, It is no physical wiring between the devices, which has the advantage of open and close installation, convenient and fast wiring, no extra infrastructure or installation costs.
3. Specification
* Material: The front panel is tempered glass, which has the advantage of Anti- scratch and high-quality visual effects. The back cover is high quality plate metal with Special Integral molding, it is safe for indoor and outdoor applications.
* OEM or ODM Available: Logo, brand, design, size, color, function, etc, customization available;
* 3 inch highlight LCD display: Shows live charging current, voltage, power consumption, time
* Versatile Installation wall mount or pedestal applications
4. Protection:
* RCD Type B inside,it is more safe than Type A.
* High quality production and design standards for safe and reliable use with multiple fault protection: Overvoltage Protection,Undervoltage Protection, Overload Protection, Short Circuit Protection, Earth leakage Protection, Ground Protection, Over-temp Protection, Surge Protection and etc.
