| Minimum Order Quantity : | 10 sets | Packaging Details : | Carton |
|---|---|---|---|
| Delivery Time : | 5~10 days |
| Brand Name: | TOPSUN | Certification: | TUV, CE, UL |
|---|---|---|---|
| Model Number: | T-EN-EV32 |
|
Detail Information |
|||
| Connector: | Type 2 Female To Mlae | Charging Port: | 1 Port |
|---|---|---|---|
| Voltage: | 240V AC | Rated Current: | 32A |
| Standard: | IEC 62196 | Working Temperature: | -30℃~+50℃ |
| Highlight: | SAEJ1172 type 1 EV Charger Cable,32A 240V EV Charger Cable SAEJ1172 type,IP54 ev home charging cable |
||
Product Description

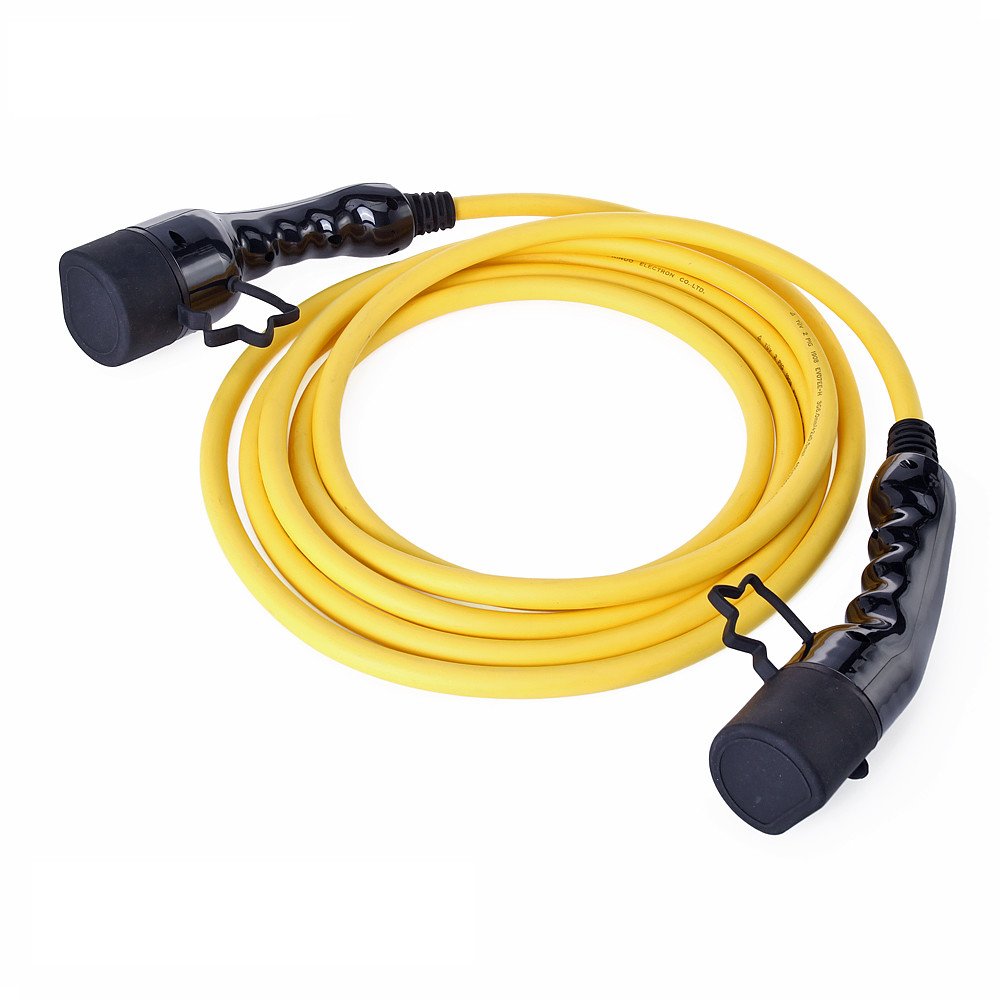

32A 240V Home Use Portable EV Charger SAE J1172 ev charging cable type 2 Type 1
|
Product Definition
|
|
|
Stadnard
|
IEC 62196-2:2016
|
|
Charging Mode
|
Mode 2
|
|
Power Plug Type
|
Schuko/Other
|
|
Current Type
|
AC
|
|
Housing Color
|
white/black
|
|
Cable Color
|
Black
|
|
Electric Parameter
|
|
|
Rated Current
|
16A, 1Phase
|
|
Rated Voltage
|
220V-250V
|
|
Power Pin Numbert
|
3 ( L1, N, PE )
|
|
Signal Pin Numbert
|
2 ( PP, CP )
|
|
Signal Pin Current
|
2A
|
|
Insulation Resistance
|
≥5MΩ
|
|
Ambient condition
|
|
|
AmbientTemperature
( working )
|
-30℃--50℃
|
|
AmbientTemperature
( storage )
|
-40℃--80℃
|
|
Ingress Protection
|
IP54
|
|
Mechanical Performance
|
|
|
Insertion & Pullout Times
|
＞10000 times
|
|
Insertion & Pullout Force
|
45N～100N
|
|
Withstanding Impact Force
|
Affordable 1 meter height fell or 2 ton car run over presure
|
|
Major Material
|
||||
|
Plug Material
|
Reinforced Thermoplastic, UL94V-0
|
|||
|
Housing Material
|
Reinforced Thermoplastic, UL94V-0
|
|||
|
Cap Material
|
PUR
|
|||
|
Pin Material
|
Copper Alloy, Silver Plated
|
|||
|
Cable Configuration
|
||||
|
Single Phase 16A
|
3*2.5mm²+1*0.5mm²
|
|||
|
Cable Style
|
flat cable
|
|||
|
Cable Material
|
TPE
|
|||
