| Minimum Order Quantity : | 10 sets | Packaging Details : | Carton |
|---|---|---|---|
| Delivery Time : | 5~10 days |
| Brand Name: | TOPSUN | Certification: | TUV, CE, UL |
|---|---|---|---|
| Model Number: | T-EN-EV32 |
|
Detail Information |
|||
| Connector: | Portable EV Charger Cable | Rated Voltage: | 110V~240V AC |
|---|---|---|---|
| Rated Current: | 6A/8A/10A/13A/16A | Standard: | IEC 62196 |
| Contact Impedance: | 0.5M Max | Working Temperature: | -30℃~+50℃ |
| Highlight: | 10A 13A EV Charger Cable,UL94 V0 EV Charger Cable,IP67 TUV smart car charging cable |
||
Product Description
|
Rated Current:
|
16A
|
||
|
Operating Voltage
|
220V~240V
|
||
|
Insulation Resisitance
|
>1000MΩ(DC500V)
|
||
|
Withstand Voltage
|
2000V
|
||
|
Contact Pin
|
Copper alloy, Silver plating
|
||
|
Working temperature
|
-30°C ~+50°C
|
||
|
Flame Retardant Grade
|
UL94 V-0
|
||
|
Contact Resistance
|
0.5mΩ Max
|
||
|
Waterproof
|
IP67
|
||
|
Certificate
|
CE, TUV Approved |
||
|
Product Name
|

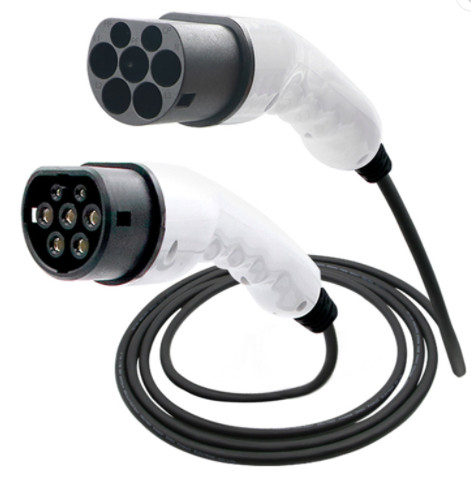

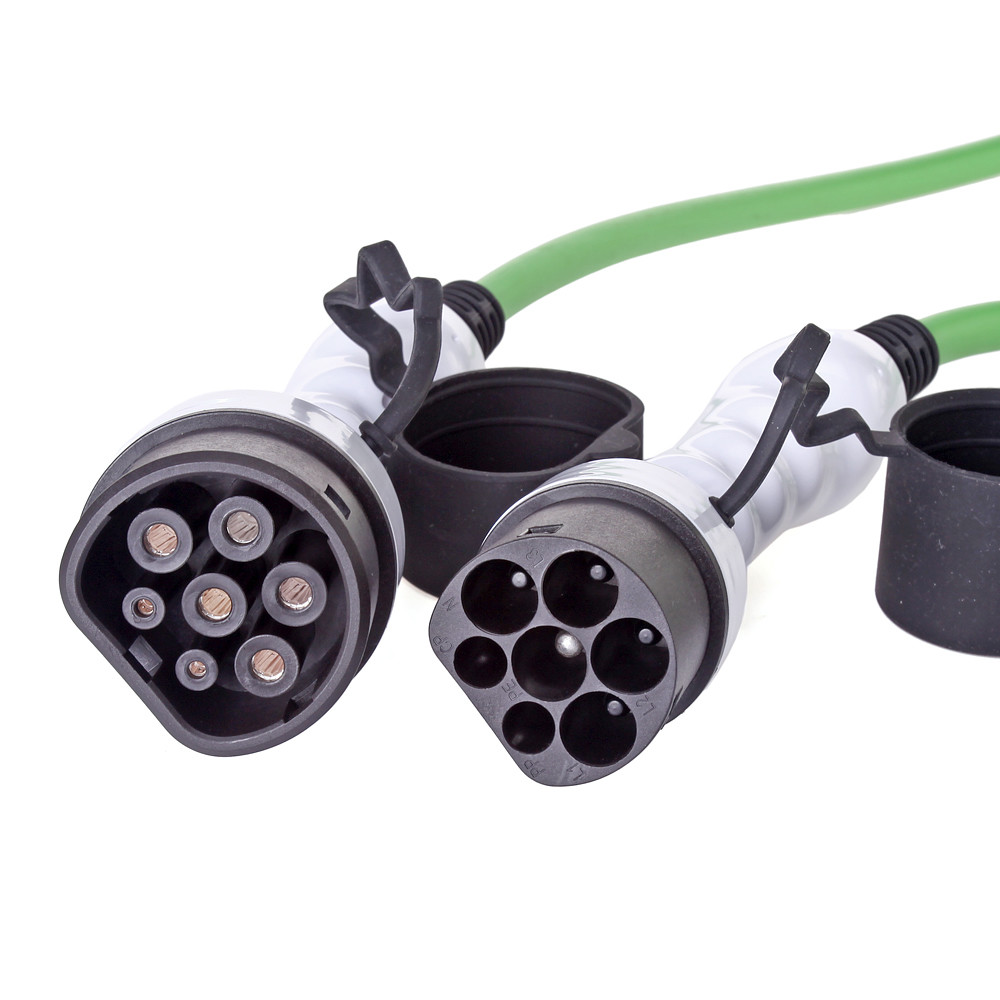

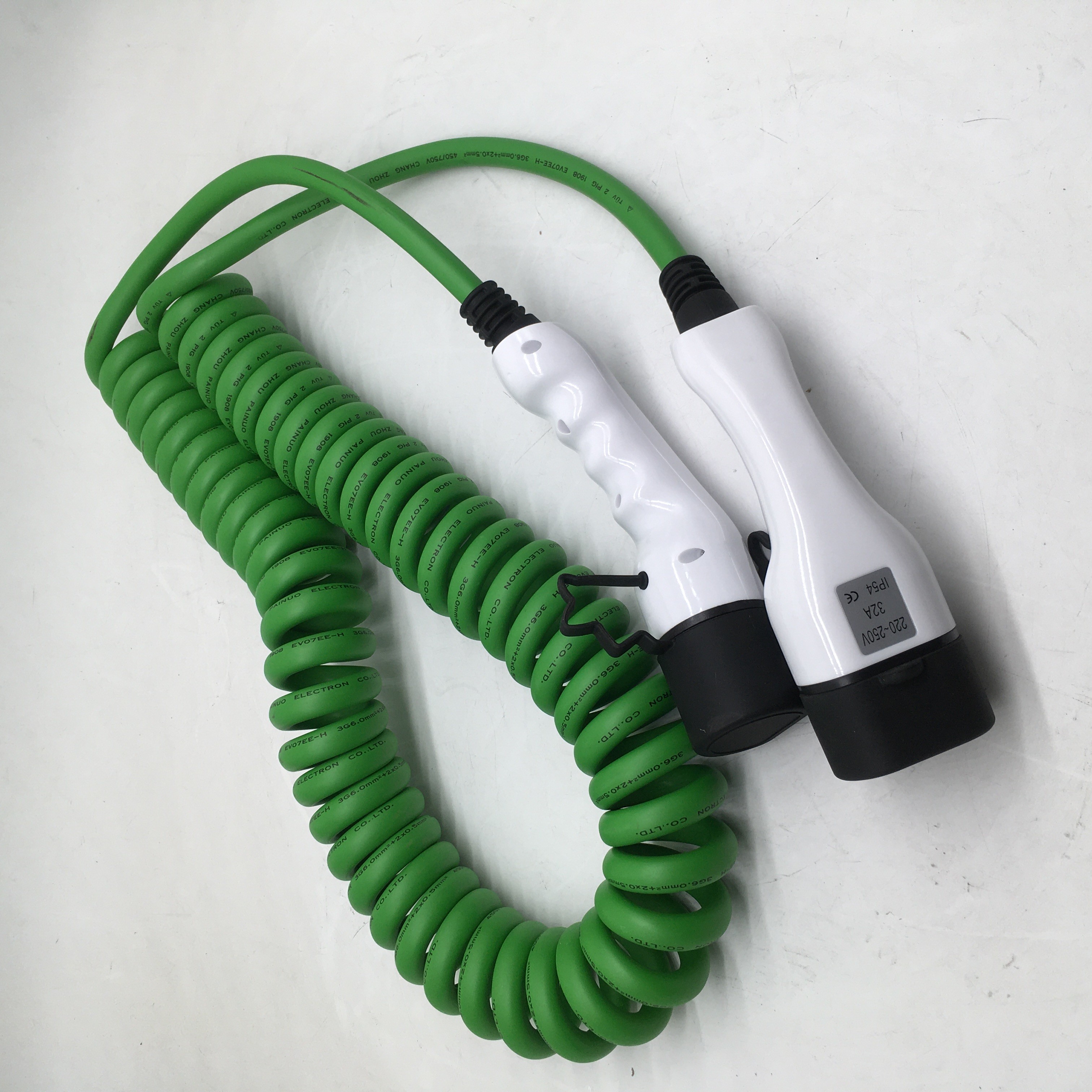

Level 2 portable ev charger home use 6A/8A/10A/13A/16A adjustable type 2 charging cable | ||
Features
1. Conform to the provisions and requirements of IEC 62752, IEC 61851.
2. Using riveting pressure process with none screw ,have a beautiful appearance. Hand-held design conform to the ergonomic principle , plug conveniently.
3. TPE for cable insulation prolonging the aging resistance life-span, TPE sheath improved the bending life and wear resistance of ev charging cable.
4. Excellent protection performance, protection grade achieved IP67 (working condition).
Materials
Shell Material: Thermo Plastic ( Insulator inflammability UL94 VO)
Contact Pin: Copper alloy, silver or nickel plating
Sealing gasket: rubber or silicon rubber
TPE insulation,TPE Sheath EV Charging Cable for EV Plug & EV Socket ,32A 240V 62196
